How to Choose a Thermal Transfer Ribbon Without Ordering the Wrong Roll

Quick answer: Choose a thermal transfer ribbon by matching its formulation to your label material and durability requirements, then checking your printer’s ribbon dimensions, core and ink-side specifications. Wax generally suits paper, wax-resin offers greater durability, and resin suits demanding applications on compatible materials. Test the combination before ordering in bulk.

Ordering a barcode printer ribbon should not be guessed. Choosing a roll that physically fits is only part of the job: the ribbon must also work with your label material and produce print that survives its intended application.

At TechroDex, our recommendation is to treat the printer, label and ribbon as one system. Start with the application, confirm compatibility, and then compare suitable options.

This guide explains what to check before buying thermal transfer ribbons for your business.

1. Check whether your printer actually needs a ribbon

Direct thermal printing does not use a ribbon. It produces an image by heating a specially coated label surface.

Thermal transfer printing uses a ribbon to transfer ink onto a compatible label or tag. Before ordering consumables, confirm which printing method your exact printer supports and which label material you are using.

Do not assume that every barcode printer requires the same supplies. For equipment that supports both methods, the loaded media and selected printing mode must match the job; ribbon should not be loaded for direct thermal printing.

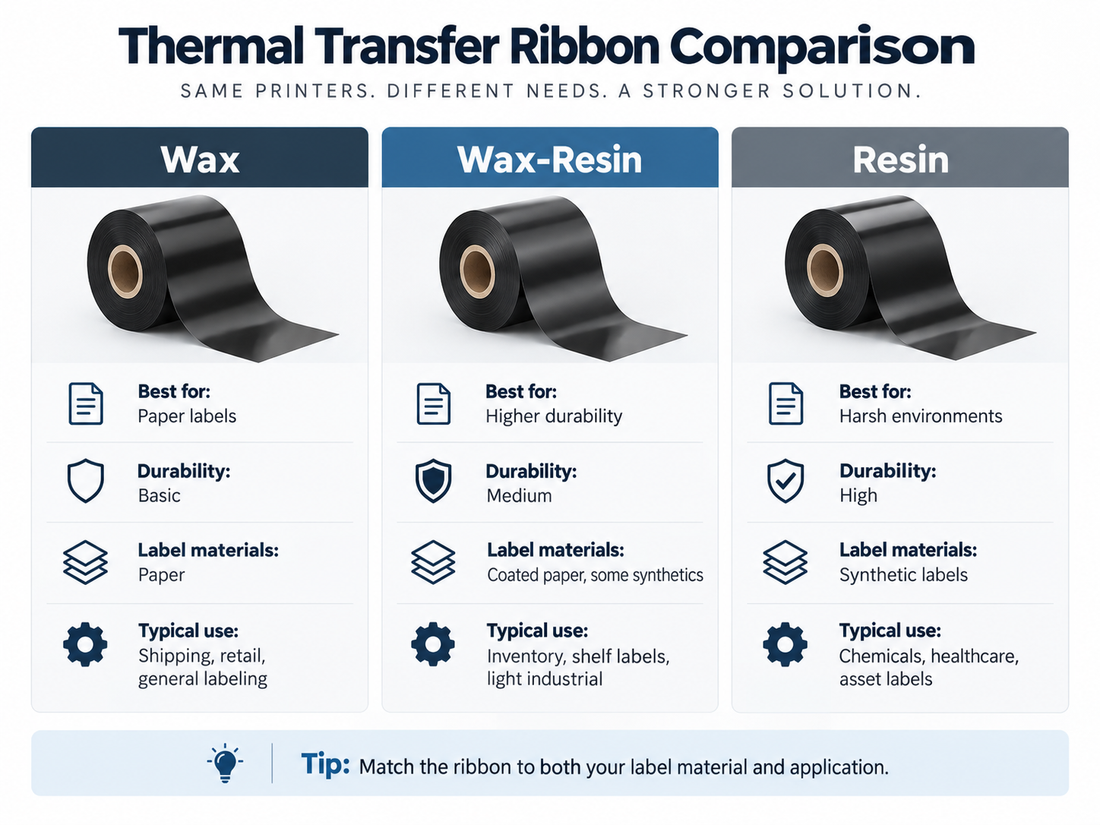

2. Compare wax, wax-resin and resin ribbons

The three main ribbon categories offer different balances of material compatibility, print durability and cost. Use the comparison below to create a shortlist, rather than treating any category as a universal solution.

These are general selection guidelines. Manufacturers offer different formulations within each category, with different performance characteristics.

Start with the label material not the ribbon price

Ask your label supplier for the material specification. “White label” is not enough: the printable surface and its coating affect how well the ribbon ink transfers and adheres.

For example, do not automatically order the same ribbon when changing from a paper label to a synthetic label. Confirm the recommended ribbon-and-label combination first.

Choose your labels and tags alongside your ribbon, particularly when introducing a new label material or changing suppliers.

3. Check the ribbon size and printer compatibility

A description such as 110 mm × 300 m gives you the ribbon’s width and length. It does not, by itself, confirm that the roll is suitable for your printer.

Before purchasing, check the following specifications against the documentation for your exact model. Manufacturer ribbon specifications can include width, length, core diameter, maximum roll diameter and coating orientation.

Ribbon width

Choose a ribbon that fits within the printer’s supported width range and provides the media coverage required by the manufacturer.

Zebra, for example, advises using ribbon at least as wide as the media to protect the printhead from wear. Do not choose ribbon width based only on the width of the barcode printed on the label.

Ribbon length and roll diameter

Check both the supported ribbon length and the maximum outside diameter of the roll. A longer ribbon is not automatically compatible simply because its width is correct.

For a concrete example, Zebra specifies a 74-meter ribbon for the ZD411T. That is why a generic description such as “ribbon for a Zebra printer” is insufficient for ordering.

Core size and fit

The core is the tube at the centre of the ribbon roll. Confirm its internal diameter and any required core length, notches or spindle fit not just the ribbon dimensions.

On printers using a separate take-up core, that component also needs to meet the manufacturer’s requirements. Incorrect or damaged cores can contribute to slipping, wrinkling and print problems.

Coated side out versus coated side in

Coated side out (CSO) means the ink coating faces outward on the roll. Coated side in (CSI) means it faces inward.

Check the required orientation for your printer and its installed ribbon setup. Do not rely solely on a brand-level compatibility claim.

Flat-head versus near-edge compatibility

Thermal transfer ribbons are also formulated for different printhead technologies. A ribbon suitable for a flat-head printer should not be assumed suitable for a near-edge printer, even when the dimensions match.

Some formulations support both technologies, but that compatibility must be specifically confirmed.

4. Choose for the conditions the label will face

Where the label is printed is not necessarily where it will spend its working life. Consider the entire journey: application, storage, handling, transport and eventual use. Temperature, chemicals, abrasion and required readability all influence the selection.

For a UAE business, a useful specification might describe an indoor retail shelf, an outdoor storage area, a refrigerated environment or a workshop where labels may contact oil. Give the supplier the actual conditions rather than requesting a ribbon that is simply “heavy-duty”.

Where possible, specify the expected temperature range, the substances the label may contact and how long the information must remain readable. Different applications require different ribbon-and-material combinations.

Remember that durable print and durable labels are different requirements

A resin ribbon does not, by itself, make an ordinary paper label waterproof. The label material, printed image and adhesive each have their own performance requirements.

For cold-storage work, also distinguish between the temperature when the label is applied and the temperature it will experience afterwards. Adhesives can have different application and service-temperature limits.

This is why choosing thermal transfer ribbons separately from the label specification can leave an important part of the application unresolved.

5. Test the combination before buying in bulk

A manufacturer’s compatibility recommendation is a starting point. Confirm performance using your actual label stock, printer settings and operating environment before committing to a larger purchase.

For your initial trial, use this practical sequence:

1. Print the real label design. Include the barcode, small text and graphics you intend to use not just a basic test message.
2. Check it in the actual workflow. Apply labels to the intended surface and evaluate them after representative handling and exposure, following your workplace’s testing procedures.
3. Record the successful setup. Keep the ribbon reference, label reference, print speed and darkness setting with your purchasing specification.

This turns the trial into a repeatable ordering standard, rather than a one-off approval.

Do not solve every print problem by increasing darkness

Printer settings matter, but more heat is not always better. TSC warns that excessive darkness can reduce barcode readability, burn through ribbon and accelerate printhead wear.

Start with the manufacturer’s recommendations and make controlled adjustments. The objective is the lowest darkness setting that produces the required print quality, with a suitable print speed not the darkest-looking label possible.

What should you send when requesting a ribbon quotation?

Instead of asking only for “barcode ribbon”, send a specification that allows the supplier to check both compatibility and application requirements.

Copy and complete this checklist:

Printer: Brand, full model number and variant
Labels: Material or supplier reference, label dimensions and backing width
Current ribbon: Part number or packaging photo; width, length, core and ink side where known
Application: What you are labelling, expected conditions and required readable lifespan
Quantity: Initial order quantity and estimated monthly usage
Delivery: City and required delivery date
Current issue, if any: Smudging, weak print, ribbon breakage, poor fit or another problem

Mark uncertain details as “unknown” rather than guessing. Include photographs of the printer’s model plate and existing ribbon packaging to give the supplier a clearer starting point.

For repeat orders, our recommendation is to keep the approved ribbon and label references together. Treat a proposed substitute as a new compatibility check, not an automatic like-for-like replacement.

Frequently asked questions

Are barcode printer ribbons universal?

No. A suitable ribbon needs to match the printer’s physical requirements and printhead technology, as well as the label material and application. Matching the width alone is not enough.

Can resin ribbon be used on paper labels?

Some resin formulations support selected coated paper materials. It is therefore too simplistic to say that resin works only on synthetic labels; confirm the specific combination and its operating limits.

For example, HPRT lists a performance resin option for the HT500 that supports both synthetics and coated paper, with different maximum print speeds.

Why does my barcode print rub off?

Possible causes include an unsuitable ribbon-and-label combination, insufficient print resistance for the application, or printer settings that do not achieve proper transfer.

Check material compatibility and setup before assuming the printer needs replacing. Printhead cleanliness, pressure, darkness and print speed can all affect the result.

Is the most expensive ribbon always the best choice?

Not necessarily. A higher-performance formulation is useful when the application needs its properties; the selection should still be based on compatibility and required performance rather than price alone.

Our purchasing recommendation is simple: choose the least costly approved option that passes your application test, then keep that specification consistent.

Need help choosing thermal transfer ribbons in the UAE?

Send your printer model, label material, required quantity and application details to sales@techrodex.com for a ribbon recommendation and quotation.

Not sure which material you currently use? Include the label supplier’s reference and photographs of your existing ribbon packaging. TechroDex can help you work through the selection before you place an order.
